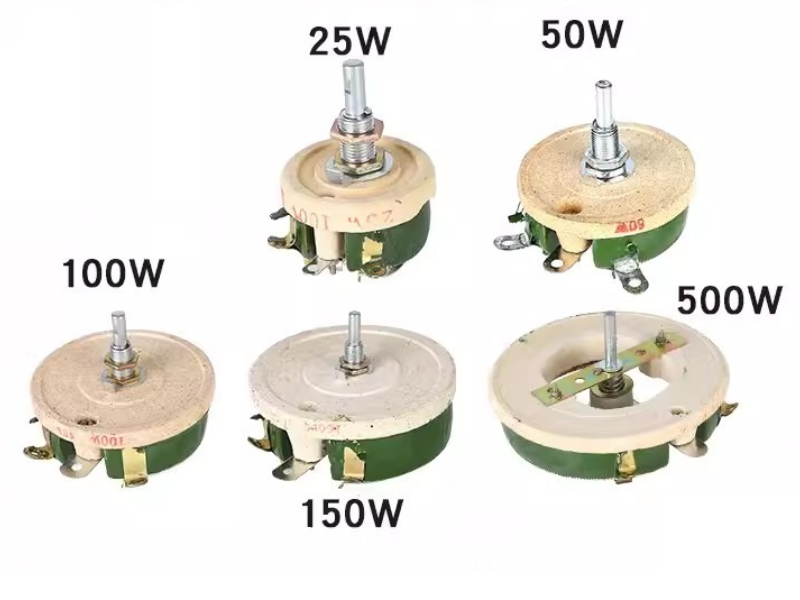

100r Ceramic Variable Resistor 25W 1-10kΩ ±10% Tolerance

Name: 100r Ceramic Variable Resistor 25W 110kΩ 10 Tolerance
Brand: China
Price: 1 USD

China 100r Ceramic Variable Resistor 25W 1-10kΩ ±10% Tolerance wholesale

Place of Origin : Sichuan, China

Brand Name : China

Model Number : BCI

MOQ : 100

Resistance : 1-10kΩ

Resistance Tolerance : ±10%

Composition : Ceramic

Operating Temperature : -55°C~+165°C

Number of Resistors : 1

Size : 106*48*120mm

Extreme Voltage : 1000V

Insulation Voltage : 2500V

Temperature Rise : ≤300K (25-100W), ≤350K (≥150W)

Sliding Itinerary : 280±5° (25-50W), 300±5° (≥100W)

Linear Deviation : ≤±10%

Rotation Cycles : 5000 weeks

Insulation Resistance : ≥100mΩ (500Vdc)

Maximum Heating : 350℃

Head Itinerary : 300°±10°

Contact Now

100r Ceramic Variable Resistor 25W 1-10kΩ ±10% Tolerance

The BC-1 wire wound resistor has high resolution ability. The range of resistance value is wide, heat resistance, humidity
resistance, wear resistance and other characteristics,Suitable for the voltage and current adjustment of the power equipment and circuit that does not exceed 380V and the DC does notexceed 220V.

Technical parameters of BC1 -type rotor rotor resistance:

1. Extreme work voltage of the resistor: 1000V: an insulation voltage 2500V
2. The temperature rise of the barrier: 25-100W variety ≤300K; ≥150W variety: ≤350K
3. Sliding itinerary: 25-50W variety: 280 ± 5 °; ≥100W variety: 300 ± 5 °
4. Law of law blocking, linear deviation: In the entire itinerary, the rhythmic block changes to a straight line, and the linear
deviation is not greater than ± 10%
5. The transformer control shaft rotates 5,000 weeks within a itinerary of not less than 90%.
6. The transformer with a high temperature of 40 ° C is 6 weeks (six days), and the insulation resistance is less than1.5mΩ

product description:

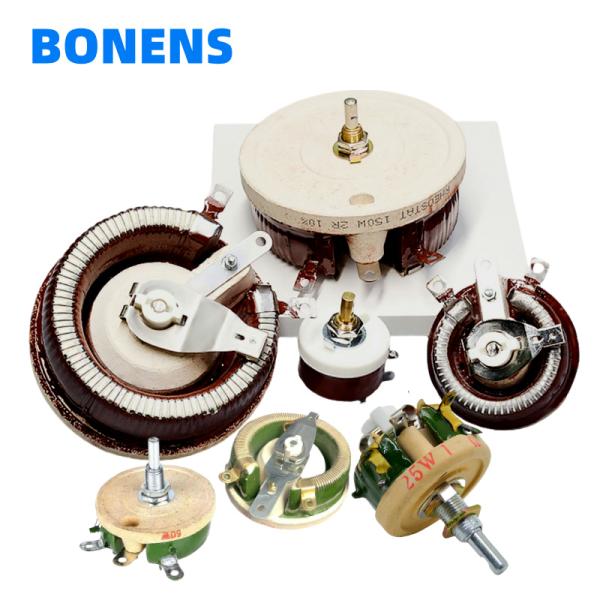

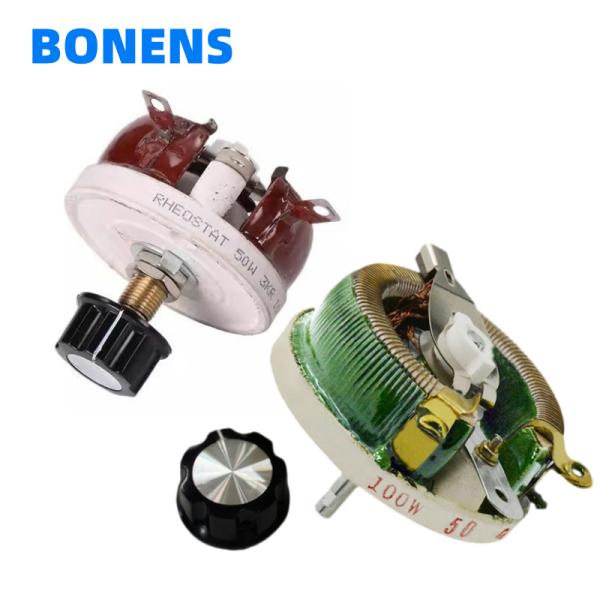

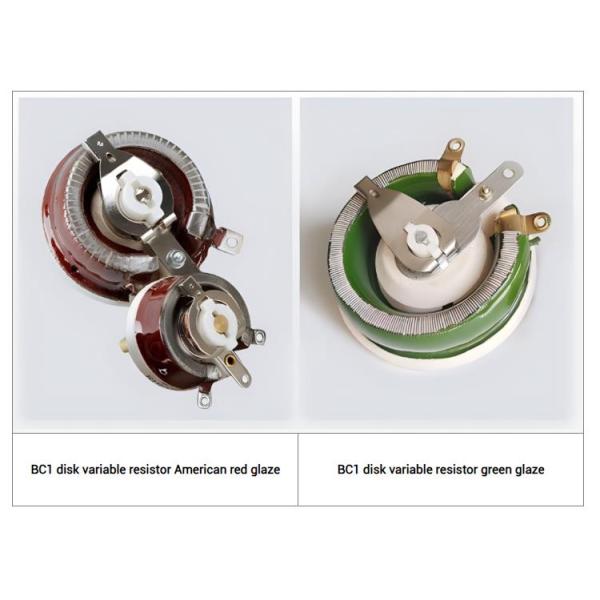

The BC1 series of rotor -arm sliding wire porcelain disk variants are suitable for voltage, current adjustment, and cross -current
electric motor speed adjustment in industrial electrical equipment with a voltage of no more than 500 volts. The barrier is used
as a resistance material to the round ceramics skeleton by the Kang copper line or nickel chromium wire. The resistance materials
are coated with high temperature enamel coatings and bonded on the ceramics chassis except for sliding contact surface. The
sliding of the grip and brush to obtain the resistance value of the change. The variable resistor is separated and protected. Its
protective type is the barrier plus metal protective box shell, which is equipped with a handwheel.

Product parameters

ELECTRICAL CHARACTERISTICS			ENVIRONMENT CHARACTERISTICS
Standard resistance range	1Ω~5KΩ	temperature range	-55℃~350℃
Resistance error error	±10%	vibration	10~200HZ,40m/S2, 3h△R≤±3%R
Terminal resistance	≤0.2%or 1Ω	Temperature circulation	-55°,30min,85°,30min △R<+3%R,R1>500MΩ
Insulation resistance	≥100mΩ(500Vdc)	Dampness	40±2°,RH:95%-98% 48h△R≤±3%R,R12100MΩ
Maximum heating temperature	350℃	Load -resistant	R≤1KQ,5000 cycles R≤1KQ, 1000 cycles△R≤±5%R
Head mechanical itinerary	300°±10°	Shock	60 ~ 100 times/min, 150m/s2,4000 times Electrical contact is good, inadvertently damaged

application area:

Applicable online communication, transportation railway, electrical equipment, medical equipment, industrial equipment, low-frequency AC or DC electrical equipment for regulating control voltage, current or adjustable load resistance

Product size

Q1: How can I place order?

A: You can contact us by email about your order details, or place order on line.

Q2: How can I pay you?

A: After you confirm our PI, we will request you to pay. T/Tand Paypal, Western Union are the most usual ways we are using.

Q3:What’s the order procedure?

A: First we discuss order details, production details by email or TM. Then we issue you an Pl for your confirmation. You will be requested to do pr -epaid full payment or deposit before we go into production. After we get the deposit, we start to process the order. We usually need 7-15days if we don’t have the items in stock. Before production has been finished, we will contact you for shipment details, and the balance payment. After payment has been settled, we start to prepare
the shipment for you.

Q4: How do you take care when your clients received defective products?

A: Replacement. If there are some defective items, we usually credit to our customer or replace in next shipment.

Q5: How do you check all the goods in the production line?

A: We have spot inspection and finished product inspection. We check the goods when they go into next step production procedure.
